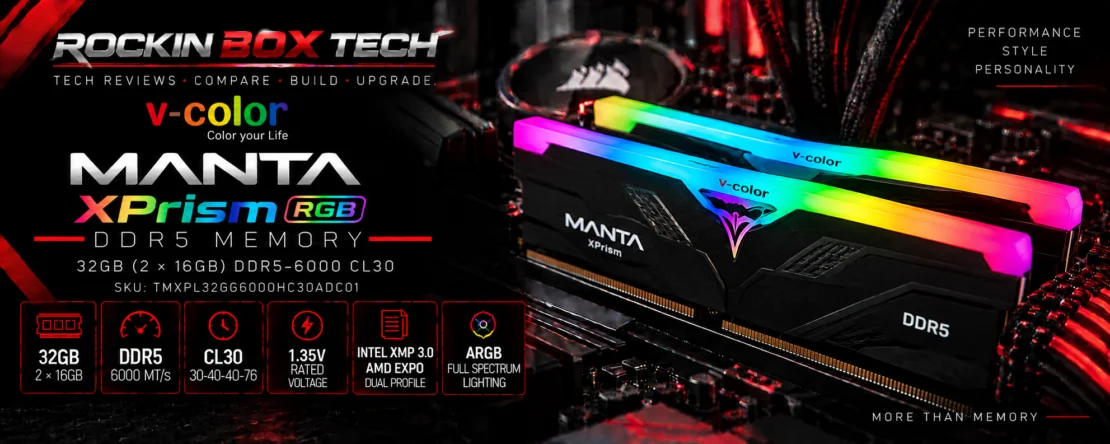

V-Color Manta XPrism RGB DDR5-6000 CL30
32GB enthusiast DDR5 kit with two 16GB modules, 6000 MT/s speed, CL30 timings, performance-profile support and full-spectrum RGB lighting.
Quick Product Overview
The V-Color Manta XPrism RGB DDR5-6000 CL30 reviewed here is model TMXPL326G6000HC30ADC01, a 32GB desktop memory kit containing two 16GB DDR5 modules.
This configuration targets 6000 MT/s with 30-40-40-76 timings at 1.35V.
V-Color positions the Manta XPrism family toward gaming and enthusiast systems, combining high-performance DDR5 specifications with a substantial heat-spreader design and addressable RGB lighting.
Key Specifications
| Manufacturer | V-Color |
|---|---|
| Product Family | Manta XPrism RGB DDR5 |
| Part Number | TMXPL326G6000HC30ADC01 |
| Total Capacity | 32GB |
| Module Configuration | 2 × 16GB |
| Memory Type | DDR5 |
| Rated Speed | DDR5-6000 / 6000 MT/s |
| Primary Timings | 30-40-40-76 |
| CAS Latency | CL30 |
| Rated Voltage | 1.35V |
| Performance Profiles | Intel XMP 3.0 / AMD EXPO support |
| Form Factor | 288-pin DDR5 UDIMM |
| Heat Spreader | Performance heat-spreader design |
| RGB Lighting | Addressable full-spectrum RGB |
| On-Die ECC | DDR5 on-die ECC |
Performance & Use-Case Information
Gaming
DDR5-6000 with CL30 latency provides a strong balance between bandwidth and latency for current gaming platforms.
Content Creation
The 32GB capacity provides useful working space for multitasking, media creation and demanding desktop applications.
32GB Capacity
Two 16GB modules provide a practical dual-channel configuration while preserving open DIMM slots on most four-slot motherboards.
CL30 Latency
CL30 is relatively tight for DDR5-6000 and gives this configuration a latency advantage over common CL36 and CL40 kits.
Enthusiast Configuration
The combination of DDR5-6000, CL30 timings and 1.35V operation places the kit firmly above basic JEDEC-class DDR5 memory.
Showcase Builds
The large RGB light bar makes the memory particularly suitable for systems with tempered-glass side panels.
Speed, Timings & Voltage
The TMXPL326G6000HC30ADC01 configuration targets DDR5-6000 with 30-40-40-76 timings at 1.35V.
DDR5-6000 occupies a useful performance range for modern desktop platforms because it provides substantially more bandwidth than entry-level DDR5 while remaining less demanding than extreme high-frequency memory kits.
Its CL30 latency is an important part of the specification, providing tighter primary latency than many DDR5-6000 kits using CL36 or CL40 settings.
Platform & Compatibility
Intel XMP 3.0
Compatible Intel DDR5 systems can use stored performance profiles to configure the intended memory settings through BIOS.
AMD EXPO
Supported Manta XPrism configurations are also designed for modern AMD DDR5 systems using compatible performance profiles.
Motherboard QVL
Checking the motherboard manufacturer's validated memory list remains recommended when targeting the full DDR5-6000 profile.
Memory Controller
Maximum stable DDR5 frequency also depends on the integrated memory controller inside the installed processor.
Works Best With
Modern DDR5 Processor
Best suited to a modern Intel or AMD desktop processor with a memory controller capable of supporting performance DDR5.
DDR5 Performance Motherboard
A compatible DDR5 motherboard with appropriate BIOS support provides the best chance of reaching the kit's rated settings.
RGB-Synchronized Builds
The XPrism lighting is best utilized in systems where synchronized lighting and visible internal hardware are part of the overall design.
RGB Lighting & Physical Design
The Manta XPrism RGB family combines a substantial heat spreader with a broad illuminated upper section designed to make the memory highly visible inside a finished system.
Addressable RGB lighting gives builders the ability to coordinate the memory with other compatible illuminated components.
As with other taller RGB DIMMs, clearance should be verified when using large tower-style CPU air coolers.
What Independent Reviewers Found
Enthusiast Positioning
Independent coverage of V-Color Manta DDR5 products generally places the family in the performance and enthusiast segment.
High-Speed DDR5 Focus
V-Color has used the Manta family for a broad range of performance-oriented DDR5 frequencies and timing configurations.
DDR5-6000 CL30 Balance
The 6000 MT/s and CL30 combination provides a practical balance of bandwidth and latency for current gaming systems.
Profile-Based Performance
As with competing enthusiast DDR5, reaching the advertised performance depends on the appropriate BIOS memory profile.
Visual Design
The XPrism family places substantial emphasis on RGB lighting and physical presentation in addition to memory specifications.
Family-Level Testing
Independent Manta reviews cover many different speeds and capacities, so results from another SKU should not be presented as exact benchmark data for this specific kit.
Where the Research Is Consistent
Strong Points
- 32GB dual-module configuration
- DDR5-6000 performance class
- CL30 latency
- 30-40-40-76 primary timings
- 1.35V performance profile
- Modern DDR5 platform support
- Addressable RGB lighting
- Enthusiast-oriented physical design
Important Context
- Rated speed requires profile activation
- DDR5-6000 stability varies by CPU and motherboard
- 1.35V is above standard DDR5 voltage
- RGB DIMM height can affect cooler clearance
- Independent testing covers multiple Manta SKUs
- BIOS revisions can affect memory compatibility
Strengths & Limitations
Strengths
- 32GB total capacity
- 2 × 16GB configuration
- DDR5-6000
- CL30 latency
- 30-40-40-76 timings
- 1.35V rated profile
- Performance-profile support
- Full-spectrum RGB lighting
- Distinctive Manta XPrism design
Limitations
- Rated speed requires BIOS profile activation
- DDR5-6000 is not guaranteed on every platform
- RGB adds complexity for users who prefer minimal builds
- Module height should be checked with large CPU coolers
- Exact-SKU independent benchmark coverage is limited
Upgrade Considerations
From 16GB
Moving to 32GB provides more memory headroom for modern games, multitasking and demanding desktop applications.
From Slower DDR5
DDR5-6000 CL30 can improve the balance between memory bandwidth and latency compared with slower or looser-timing DDR5 kits.
For Showcase PCs
The XPrism lighting and heat-spreader design make this kit particularly relevant when memory is intended to be visible.
Alternatives to Consider
G.SKILL Trident Z5 Neo RGB DDR5-6000 CL30
A competing enthusiast DDR5-6000 CL30 kit with RGB lighting and strong AMD-platform positioning.
ADATA XPG LANCER RGB DDR5-6000 CL30
Another performance-oriented 32GB DDR5-6000 CL30 option with a prominent RGB design.
TEAMGROUP T-FORCE DELTA RGB DDR5-6000 CL30
A gaming-focused alternative combining similar performance specifications with a large illuminated heat spreader.
Who Is It Best For?
Gaming PCs
Builders looking for a 32GB DDR5-6000 kit with relatively tight CL30 latency.
Enthusiast Builds
Users who want performance-oriented DDR5 specifications combined with a distinctive physical design.
RGB Showcase Systems
Systems where illuminated memory is intended to contribute directly to the finished PC's appearance.
Rockin Box Tech Research Summary
The V-Color Manta XPrism RGB DDR5-6000 CL30 TMXPL326G6000HC30ADC01 combines a practical 32GB capacity with a performance-oriented DDR5-6000 CL30 specification.
Its 30-40-40-76 timings and 1.35V profile place it in a useful performance range for current gaming and enthusiast desktop systems.
The XPrism RGB lighting and substantial heat-spreader design also make appearance a major part of the product's appeal, particularly in systems where internal hardware remains visible.
As with other performance DDR5 kits, reaching the advertised specification depends on enabling the appropriate memory profile and on the capabilities of the processor, motherboard and BIOS. Independent results from different Manta configurations should not be treated as exact benchmark results for this specific SKU.
Research Sources
Independent published testing of V-Color Manta DDR5 configurations was used for family-level performance and compatibility context. Manufacturer specifications remain the primary source for this exact TMXPL326G6000HC30ADC01 configuration.
