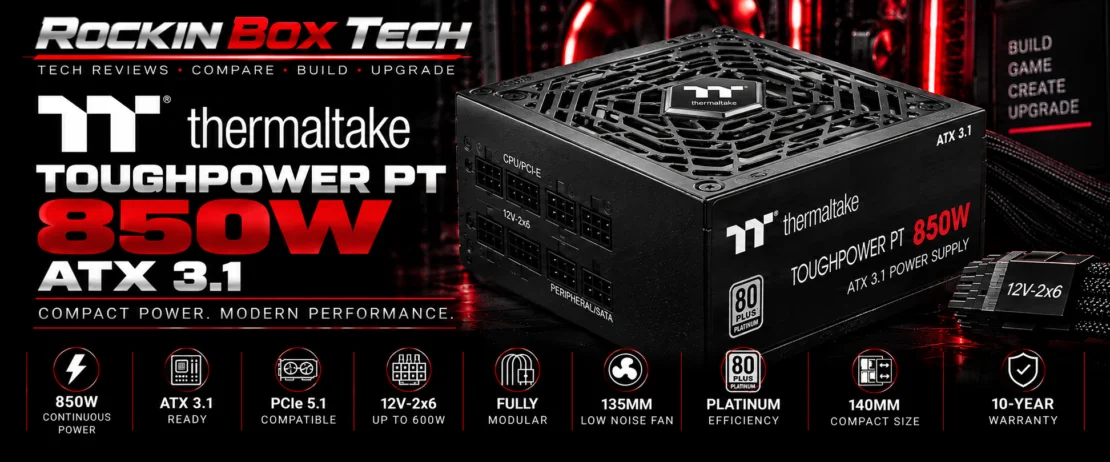

Thermaltake Toughpower PT 850W ATX 3.1
A compact 850W fully modular power supply combining ATX 3.1 compliance, native 12V-2x6 GPU power, Platinum-class measured efficiency and low-noise cooling for modern performance PC builds.
Quick Product Overview
Modern ATX 3.1 Platform
The Toughpower PT 850 is designed around the ATX 3.1 specification and successfully completed the demanding ATX 3.1 transient-response test sequence in independent laboratory testing.
Native 12V-2x6 Power
A dedicated 600W-rated 12V-2x6 cable provides direct power support for compatible modern graphics cards without requiring a multi-plug adapter at the GPU.
Compact 850W Design
At only 140mm deep, the PT 850 delivers substantial output while occupying less PSU-compartment space than many high-capacity designs.
Key Specifications
| Exact Product | Thermaltake Toughpower PT 850W |
|---|---|
| Continuous Output | 850W |
| ATX Compliance | ATX 3.1 |
| Efficiency | Cybenetics Platinum measured classification |
| Cabling | Fully modular |
| +12V Design | Single +12V rail |
| GPU Power | 1 × native 12V-2x6, rated up to 600W |
| EPS / CPU | 2 × 4+4-pin EPS connectors |
| PCIe | 4 × 6+2-pin PCIe connectors across 2 cables |
| SATA | 6 connectors |
| Molex | 4 connectors |
| Cooling | 135mm fluid-dynamic-bearing fan |
| Semi-Passive Mode | No |
| Dimensions | 150 × 85 × 140mm |
| Warranty | 10 years |
Power Connections
12V-2x6
The included 600mm native 12V-2x6 cable is rated for up to 600W, providing a direct connection for compatible high-performance GPUs.
CPU & Traditional PCIe
Two dedicated EPS cables support modern high-performance CPUs, while four conventional PCIe 6+2-pin connectors maintain compatibility with graphics cards using traditional power inputs.
Storage & Accessories
Six SATA and four 4-pin Molex connectors provide useful peripheral coverage for drives, fan controllers, lighting hubs and accessories.
ATX 3.1 & Transient Performance
Modern CPUs and especially high-performance graphics cards can create extremely rapid changes in power demand. ATX 3.1 power supplies are designed to tolerate these short-duration excursions without allowing the main output rails to fall outside required limits.
The Toughpower PT 850 passed the complete ATX 3.1 transient-response test sequence during independent laboratory testing. The +12V rail also showed good behavior during conventional transient testing, making this one of the stronger aspects of the platform.
Electrical Performance
+12V Regulation
The +12V rail maintains stable output across changing loads, providing a solid foundation for modern CPU and GPU power delivery.
Transient Response
Independent testing found good transient behavior on both the +12V and 5V rails, with the PSU also passing the ATX 3.1 transient suite.
3.3V Performance
The 3.3V rail was less impressive during transient testing. It remained within the ATX specification but showed a noticeably larger voltage drop than the stronger +12V and 5V rails.
Efficiency
Efficiency is one of the PT 850's notable strengths. Independent testing found high efficiency under normal loads, and its measured average efficiency satisfied Cybenetics Platinum criteria.
Performance at very light loads was less impressive. Testing found that the PSU did not reach the ATX 3.1 recommended 70-percent efficiency mark during super-light-load operation.
For a gaming or performance workstation that spends substantial time under meaningful load, however, its normal-load efficiency remains a strong characteristic.
Cooling & Acoustic Performance
Cooling is handled by a 135mm fluid-dynamic-bearing fan. Unlike some competitors, the PT 850 does not use semi-passive operation, so the fan continues spinning at light loads.
That does not automatically make the unit noisy. Independent testing found the average noise output among the lowest in its 850W comparison group. The fan remains near roughly 400 RPM through a substantial portion of its operating range before gradually increasing as load and temperature rise.
This approach trades complete fan-stop silence for continuous airflow and a very relaxed fan profile.
Internal Design & Platform
The Toughpower PT 850 uses Channel Well Technology's CSA platform. The primary stage employs a full-bridge design paired with an LLC resonant converter, while the compact internal layout uses substantial primary-side heatsinking to maintain cooling.
Independent teardown analysis found reputable electrolytic capacitors, including a Nichicon 105°C-rated bulk capacitor. The platform does use less expensive semiconductor components in some positions rather than premium-tier alternatives, reflecting an effort to balance performance, efficiency and manufacturing cost.
Protection Features
OCP
Over-current protection.
OVP
Over-voltage protection.
UVP
Under-voltage protection.
OPP
Over-power protection.
OTP
Over-temperature protection.
SCP
Short-circuit protection.
850W Build Position
850W remains one of the most flexible capacities for performance PC building. It can provide useful headroom over 650W and 750W units without automatically moving into 1000W-plus hardware.
The PT 850's native 600W 12V-2x6 connection makes it particularly relevant to modern GPU systems, but the correct PSU capacity must still be calculated from the complete system rather than the connector's maximum rating.
Works Best With
Modern Gaming PCs
850W output and native 12V-2x6 connectivity suit properly matched performance gaming systems using current-generation graphics hardware.
Space-Conscious ATX Builds
The compact 140mm depth can make cable management and PSU installation easier in chassis with limited power-supply compartment space.
Quiet Performance Systems
Its relaxed fan profile and low measured average noise make it suitable for builders who want strong performance without excessive PSU noise.
Owner Satisfaction & What People Are Saying
Positive Factors
- Compact 140mm depth improves installation flexibility.
- Fully modular cables simplify cable management.
- Native 12V-2x6 support is useful for modern GPUs.
- 850W capacity covers a broad range of performance builds.
- Quiet fan behavior is supported by independent acoustic testing.
- Long warranty coverage supports multi-build ownership.
Points to Consider
- No semi-passive fan-stop mode.
- The 24-pin motherboard cable is relatively short for some large cases.
- Super-light-load efficiency is weaker than its normal-load efficiency.
- 3.3V transient performance is less impressive than the +12V rail.
- Independent testing identified protection-tuning concerns.
- Thermaltake has many similarly named Toughpower families, so exact model identification matters.
Strengths & Limitations
Strengths
- 850W continuous output
- ATX 3.1 compliant
- Passed ATX 3.1 transient testing
- Native 600W 12V-2x6 cable
- Fully modular cabling
- Cybenetics Platinum measured efficiency
- Strong normal-load efficiency
- Good +12V transient behavior
- Low average noise
- 135mm fluid-dynamic-bearing fan
- Compact 140mm depth
- CWT CSA platform
- Quality electrolytic capacitors
- 10-year warranty
Limitations
- No semi-passive fan mode
- Super-light-load efficiency could be better
- 3.3V transient response is only mediocre
- 540mm ATX motherboard cable may be short in large cases
- Protection tuning drew criticism in independent testing
- Continuous full-load temperature rating is 40°C
Who Is It Best For?
The Thermaltake Toughpower PT 850 is best suited to builders who want a compact, modern 850W power supply with ATX 3.1 compliance, native 12V-2x6 GPU support, strong efficiency and quiet active cooling.
Its 140mm depth also makes it especially useful when a chassis has less PSU space than larger enthusiast cases.
Builders focused on completely silent low-load operation may prefer a semi-passive alternative, while users who place exceptional emphasis on protection-circuit tuning should consider the independent testing results alongside the PT 850's substantial strengths.
Rockin Box Tech Research Summary
The Toughpower PT 850 combines several desirable characteristics in a compact 850W platform. It is fully modular, ATX 3.1 compliant, equipped with a native 600W 12V-2x6 connection and backed by a ten-year warranty.
Independent laboratory testing strengthens the case for its electrical design in several areas. The PSU passed the ATX 3.1 transient suite, showed good +12V transient response, achieved Platinum-level average efficiency and produced very low average noise. :contentReference[oaicite:0]{index=0}
It is not without compromises. The 3.3V transient response was less impressive, super-light-load efficiency fell below the ATX 3.1 recommendation, and independent testing raised concerns about aspects of protection tuning. :contentReference[oaicite:1]{index=1}
Internally, the CWT CSA platform uses a modern full-bridge and LLC design with quality electrolytic capacitors, although some semiconductor choices are more cost-conscious than those used by premium flagship platforms. :contentReference[oaicite:2]{index=2}
For a properly sized gaming or performance PC, the PT 850's combination of compact dimensions, modern GPU connectivity, high measured efficiency and restrained acoustics makes it a credible modern 850W option.
Research Disclosure
This Rockin Box Tech review is research-driven and based on current product documentation, independent laboratory testing and publicly available owner/community information.
The product was not necessarily physically tested by Rockin Box Tech. Electrical, efficiency and acoustic observations are based on published professional testing rather than claims of in-house laboratory testing.
Exact model identification matters. Specifications from other Thermaltake Toughpower families or different PT wattages should not automatically be applied to this 850W model.
Actual PSU noise, temperature, efficiency and suitability vary according to system hardware, load, ambient temperature, chassis airflow and operating conditions.
Power-supply capacity should always be selected for the complete system. Wattage, efficiency certification and brand name alone do not establish the quality or suitability of a PSU.
Manufacturer specifications, revisions, internal components, connectors and warranty terms may change after publication.
