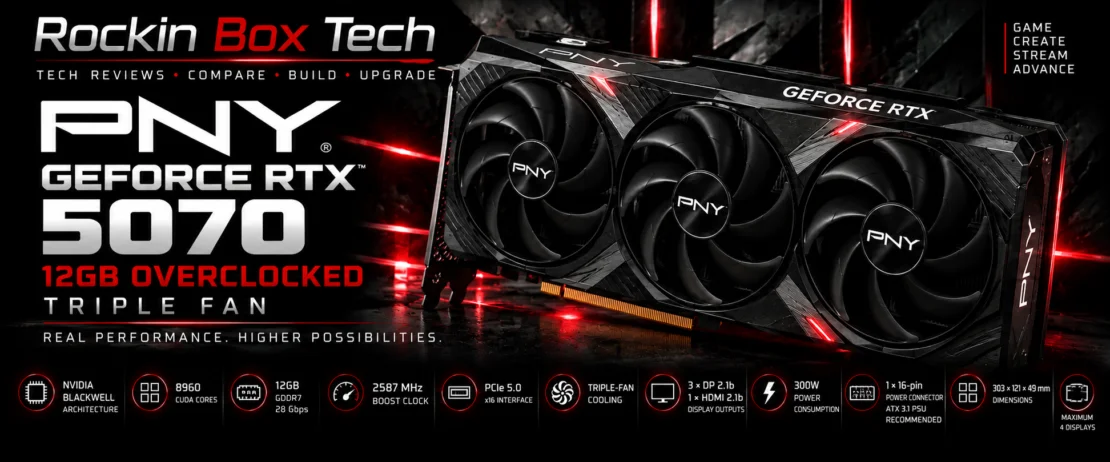

PNY GeForce RTX 5070 12GB Overclocked Triple Fan
Quick Product Overview
The PNY GeForce RTX 5070 12GB Overclocked Triple Fan is a factory-overclocked implementation of NVIDIA's Blackwell-based GeForce RTX 5070 graphics processor.
PNY equips the card with 12GB of 28 Gbps GDDR7 memory connected through a 192-bit interface. The GPU contains 6144 CUDA cores, while PNY specifies a boost clock of up to 2587 MHz.
The card uses a substantial triple-fan cooler and 2.4-slot form factor. Its combination of Blackwell architecture, GDDR7 memory and current RTX technologies positions it for performance gaming, high-refresh-rate displays and compatible GPU-accelerated creator applications.
Key Specifications
| Graphics Processor | NVIDIA GeForce RTX 5070 |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 6144 |
| Boost Clock | 2587 MHz |
| Video Memory | 12GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 192-bit |
| Memory Bandwidth | Up to 672 GB/s |
| Card Interface | PCI Express 5.0 x16 |
| TDP | 250W |
| Recommended System Power | 650W or greater |
| Power Input | 1 × 16-pin; 16-pin to 2 × 8-pin adapter included |
| DisplayPort | 3 × DisplayPort 2.1b with UHBR20 |
| HDMI | 1 × HDMI 2.1b |
| Maximum Displays | 4 |
| Maximum Display Capability | Up to 4K 480Hz or 8K 165Hz with DSC in supported configurations |
| Card Dimensions | 299.5 × 120 × 48 mm |
| Slot Width | 2.4-slot |
Performance & Use-Case Information
1440p Gaming
The RTX 5070 performance class is well suited to systems targeting high-quality and high-refresh-rate 1440p gaming.
4K Gaming
The GPU can also be used for 4K gaming, with results depending on individual games, graphics settings and supported upscaling or frame-generation technologies.
Blackwell Architecture
NVIDIA Blackwell provides current-generation shader hardware, fifth-generation Tensor cores and fourth-generation ray-tracing cores.
DLSS Technologies
Compatible games can use NVIDIA DLSS technologies including AI-assisted Super Resolution, Ray Reconstruction and supported frame-generation features.
12GB Video Memory
The 12GB GDDR7 configuration provides more graphics-memory capacity than 8GB mainstream cards while operating at a 28 Gbps data rate.
Creator Applications
NVIDIA CUDA, Tensor and RTX hardware can accelerate compatible rendering, editing, AI and other GPU-compute applications.
Cooling & Card Design
Triple-Fan Cooling
PNY uses three cooling fans across the card. The multi-fan layout is designed to distribute airflow across the GPU cooler and dissipate heat across a larger surface area.
Metal Backplate
A metal backplate adds structural support to the graphics card and incorporates ventilation intended to assist passive airflow.
Factory Overclock
This OC model carries a specified boost frequency of up to 2587 MHz, above the standard RTX 5070 reference boost specification.
2.4-Slot Design
The card occupies approximately 2.4 expansion slots. Builders should check motherboard spacing and neighboring expansion-card clearance.
299.5 mm Length
At nearly 300 mm long, case clearance should be verified before purchase, particularly where front radiators or drive cages are installed.
250W TDP
PNY specifies a 250W thermal design power for the card, making chassis airflow and PSU capacity important system-planning considerations.
Platform & Compatibility
PCI Express 5.0 x16
PNY specifies a PCI Express 5.0 x16 interface. Motherboard slot configuration should be checked when planning the system.
650W System PSU
PNY specifies a 650W or greater system power supply, although complete system requirements depend on the processor and other installed hardware.
16-Pin GPU Power
The card uses one 16-pin power input. PNY includes an adapter that connects the card to two 8-pin supplementary PCIe power connections.
Case Clearance
Verify support for the 299.5 mm card length, 120 mm height and approximately 48 mm / 2.4-slot thickness.
Four Display Outputs
Three DisplayPort 2.1b connections and one HDMI 2.1b connection provide support for as many as four displays.
Current Driver Platform
NVIDIA provides GeForce drivers and the NVIDIA App for supported operating systems and current GeForce hardware.
Works Best With
Modern Performance CPU
A capable current processor helps reduce CPU-side limitations when targeting high frame rates with an RTX 5070-class graphics card.
Quality 650W+ PSU
PNY specifies a 650W or greater system PSU. Builders should also verify the required GPU power connection or adapter arrangement.
1440p / 4K Display
The RTX 5070 performance class and modern display interfaces make it a logical match for high-resolution and high-refresh-rate displays.
Memory, Power & Display Connectivity
12GB GDDR7
Twelve gigabytes of current-generation GDDR7 provides dedicated graphics memory for games and compatible GPU-accelerated applications.
192-Bit Memory Bus
The 28 Gbps GDDR7 memory operates across a 192-bit interface with published bandwidth of up to 672 GB/s.
PCIe 5.0 x16
PNY specifies a full PCI Express 5.0 x16 graphics-card interface.
16-Pin Power Input
The card uses one 16-pin GPU power connection, with a two-8-pin adapter supplied by PNY.
DisplayPort 2.1b
Three DisplayPort 2.1b UHBR20 connections support modern high-resolution and high-refresh-rate display configurations.
HDMI 2.1b
One HDMI 2.1b connection provides additional support for compatible monitors, televisions and home-theater displays.
What Published Technical Information Shows
Factory-Overclocked RTX 5070
PNY specifies a boost frequency of up to 2587 MHz for this Overclocked Triple Fan model.
Blackwell GPU Platform
NVIDIA documents 6144 CUDA cores together with fifth-generation Tensor cores and fourth-generation ray-tracing hardware.
12GB GDDR7
PNY combines 12GB of GDDR7 with a 192-bit interface and memory bandwidth of up to 672 GB/s.
Triple-Fan Cooler
Three fans distribute airflow across the cooler, while the metal backplate provides structural reinforcement and additional ventilation.
250W Power Rating
The published 250W TDP and 650W system-power recommendation should be considered when planning an upgrade.
Current Display Standards
DisplayPort 2.1b and HDMI 2.1b provide current-generation connectivity for modern gaming monitors and televisions.
Where Research Agrees & Differs
Documented Hardware
Manufacturer documentation establishes the fundamental hardware: RTX 5070 Blackwell GPU, 6144 CUDA cores, 12GB GDDR7, 192-bit memory interface, PCIe 5.0 and 250W TDP.
Real-World Results Vary
Published benchmark results vary with processor, game version, resolution, graphics settings, driver version, cooling and test methodology. Results should therefore be interpreted in the context of the complete test system.
Strengths & Limitations
Strengths
- NVIDIA Blackwell architecture
- 6144 CUDA cores
- 12GB GDDR7 graphics memory
- 28 Gbps memory speed
- Up to 672 GB/s memory bandwidth
- Factory-overclocked PNY configuration
- 2587 MHz specified boost clock
- PCI Express 5.0 x16 interface
- Triple-fan cooling
- Metal reinforcing backplate
- 3 × DisplayPort 2.1b
- 1 × HDMI 2.1b
Limitations & Planning Considerations
- 299.5 mm card length requires case-clearance planning
- 2.4-slot thickness can restrict nearby expansion-slot access
- 250W TDP requires appropriate system cooling
- 650W or greater system PSU specified by PNY
- 16-pin power connection requires appropriate PSU cabling or adapter
- 12GB VRAM is less than some competing 16GB cards
- Actual boost frequencies vary with workload and thermal conditions
- GPU pricing can vary significantly by retailer and market conditions
Upgrade Considerations
Check the Power Supply
Confirm PSU capacity and the required GPU power connection. PNY specifies a 650W or greater system PSU.
Measure the Case
Verify clearance for the 299.5 × 120 × 48 mm card and account for front-mounted radiators, fans or drive cages.
Consider CPU Performance
High-refresh-rate gaming can become processor-limited, particularly at lower resolutions where the GPU completes frames more quickly.
Alternatives to Consider
GeForce RTX 5060 Ti
A lower-tier Blackwell option worth comparing where system cost, power consumption and 1080p or 1440p performance are priorities.
GeForce RTX 5070 Ti
NVIDIA's higher-tier RTX 5070 Ti provides additional GPU resources and 16GB of GDDR7 for buyers seeking more performance.
Radeon RX 9070 Series
AMD's current Radeon alternatives are worth comparing for raster performance, ray tracing, memory capacity, features and current pricing.
Who Is It Best For?
1440p Performance Builds
Gamers assembling a modern system around high-quality and high-refresh-rate 1440p gaming.
RTX Feature Users
Users interested in current NVIDIA ray-tracing, DLSS, AI and creator technologies.
Gaming & Creator Systems
Systems that combine gaming with compatible CUDA, rendering, editing, streaming or GPU-accelerated creative workloads.
Rockin Box Tech Research Summary
The PNY GeForce RTX 5070 12GB Overclocked Triple Fan combines NVIDIA's Blackwell RTX 5070 GPU with a factory-overclocked PNY board design, 12GB of GDDR7 memory and a substantial triple-fan cooler.
Published specifications include 6144 CUDA cores, a 2587 MHz boost clock, 28 Gbps GDDR7, a 192-bit memory interface with up to 672 GB/s bandwidth and PCI Express 5.0 x16 connectivity.
PNY specifies a 250W TDP and recommends a 650W or greater system PSU. The card measures 299.5 × 120 × 48 mm and uses a 2.4-slot design, making power supply and chassis clearance important compatibility checks.
For buyers researching a performance-focused NVIDIA graphics card, this model combines current Blackwell features, 12GB GDDR7, modern display connectivity and a factory-overclocked triple-fan design. Current pricing, system compatibility and competing GPUs should also be considered before purchase.
Research Sources
PNY
GeForce RTX 5070 12GB Overclocked Triple Fan official product specifications, product brochure and cooling documentation.
NVIDIA
GeForce RTX 5070 Blackwell architecture, GPU specifications and current GeForce RTX platform information.
Research Disclosure
Products are not necessarily physically tested by Rockin Box Tech.
Graphics performance, clock speeds, temperatures, acoustics, power consumption and application performance can vary according to processor, motherboard, memory, BIOS, graphics driver, operating system, case airflow, cooling, power configuration, application or game version, graphics settings, resolution and operating conditions.
Product specifications, firmware and driver support, pricing and availability may change after this review is published.
