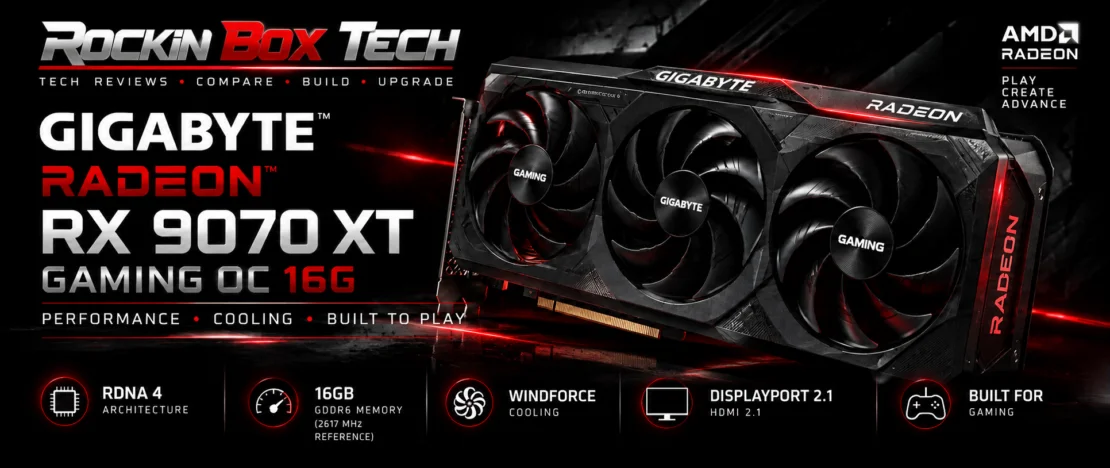

Gigabyte Radeon RX 9070 XT Gaming OC 16G
Quick Product Overview
The Gigabyte Radeon RX 9070 XT Gaming OC 16G is a factory-overclocked implementation of AMD's Radeon RX 9070 XT desktop graphics processor. It combines AMD's RDNA 4 architecture with 16GB of GDDR6 memory on a 256-bit memory interface.
Gigabyte specifies a boost clock of up to 3060 MHz and a game clock of up to 2520 MHz, both above AMD's reference clock specifications for the RX 9070 XT. The card uses a PCIe 5.0 interface and incorporates Gigabyte's multi-fan WINDFORCE cooling design.
Its combination of 16GB of video memory, modern display outputs and high-end GPU hardware positions this model primarily for performance-focused gaming systems, particularly builds targeting high-resolution and high-refresh-rate displays.
Key Specifications
| Graphics Processor | AMD Radeon RX 9070 XT |
|---|---|
| Architecture | AMD RDNA 4 |
| Stream Processors | 4096 |
| Compute Units | 64 |
| Boost Clock | Up to 3060 MHz |
| Game Clock | Up to 2520 MHz |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Interface | 256-bit |
| Card Interface | PCI Express 5.0 |
| Maximum Digital Resolution | 7680 × 4320 |
| Maximum Displays | 4 |
| DisplayPort | 2 × DisplayPort 2.1a |
| HDMI | 2 × HDMI 2.1b |
| Card Dimensions | 288 × 132 × 56 mm |
| Recommended PSU | 850W |
| Power Connectors | 3 × 8-pin |
| DirectX | DirectX 12 API |
| OpenGL | OpenGL 4.6 |
Performance & Use-Case Information
1440p Gaming
The RX 9070 XT class is aimed well above entry-level graphics hardware and is suited to performance-oriented 1440p gaming systems.
4K Gaming
The combination of a high-performance GPU and 16GB memory capacity makes high-resolution gaming one of the card's primary intended workloads.
High Refresh Rates
Powerful GPU hardware can pair effectively with high-refresh-rate monitors, although achievable frame rates remain dependent on the individual game and settings.
16GB Video Memory
The 16GB GDDR6 configuration provides substantial graphics-memory capacity for demanding games, high-resolution textures and GPU-accelerated workloads.
RDNA 4 Features
AMD's RDNA 4 platform supports current Radeon graphics technologies including modern ray-tracing hardware and FidelityFX Super Resolution technologies.
Content & GPU Workloads
The GPU and 16GB memory pool can also support compatible rendering, editing, encoding and GPU-accelerated applications in addition to gaming.
Cooling & Card Design
WINDFORCE Cooling
Gigabyte equips the Gaming OC model with its WINDFORCE cooling system. The cooler is designed to move heat away from the GPU and supporting components while maintaining airflow across the card.
Triple-Fan Layout
The card uses a large multi-fan cooling assembly intended for sustained performance workloads. Case airflow remains an important part of overall graphics-card cooling.
Factory Overclock
Gigabyte specifies clocks above AMD's RX 9070 XT reference values, with boost frequency listed at up to 3060 MHz and game frequency up to 2520 MHz.
Physical Size
At 288 × 132 × 56 mm, this is a substantial graphics card. Builders should verify case length, height and expansion-slot clearance before purchase.
Platform & Compatibility
PCI Express 5.0
The card uses a PCIe 5.0 interface. Motherboard slot configuration and available CPU PCIe resources should be considered when planning a system.
850W PSU Recommendation
Gigabyte lists an 850W recommended power supply for this model. Complete system power requirements depend on the processor and other installed hardware.
Three 8-Pin Connectors
This Gaming OC model requires three 8-pin PCIe power connections, making PSU cable availability an important compatibility check.
Case Clearance
The 288 mm length and 56 mm thickness require adequate chassis space around the card and nearby expansion slots.
Four Display Outputs
Two DisplayPort 2.1a and two HDMI 2.1b connections provide flexible modern monitor and television connectivity.
Modern Operating Systems
AMD provides current Radeon driver support for compatible Windows and Linux environments. Driver availability should be checked for the intended system.
Works Best With
Modern Performance CPU
A capable current-generation processor helps reduce CPU-side limitations when targeting high frame rates.
Quality 850W+ PSU
Gigabyte recommends an 850W PSU. Builders should also verify three appropriate 8-pin PCIe power connections.
1440p / 4K Display
The card's performance class and modern display interfaces make it a logical pairing for high-resolution and high-refresh-rate displays.
Memory, Power & Display Connectivity
16GB GDDR6
Sixteen gigabytes of dedicated video memory provides substantial capacity for modern graphics workloads.
256-Bit Memory Bus
The GDDR6 memory subsystem operates across a 256-bit interface with a specified memory speed of 20 Gbps.
PCIe 5.0 Interface
The GPU connects through a PCI Express 5.0 graphics interface.
3 × 8-Pin Power
Three conventional 8-pin PCIe connectors supply auxiliary graphics-card power.
DisplayPort 2.1a
Two DisplayPort 2.1a connections support modern high-resolution display configurations.
HDMI 2.1b
Two HDMI 2.1b outputs provide additional connectivity for compatible monitors, televisions and home-theater displays.
What Published Technical Information Shows
Factory-Overclocked RX 9070 XT
Gigabyte lists higher game and boost clocks than AMD's reference specifications for the Radeon RX 9070 XT.
RDNA 4 Architecture
AMD's RX 9070 XT is based on RDNA 4 and incorporates 64 compute units.
Large Memory Capacity
The card includes 16GB of GDDR6 memory, providing considerably more graphics memory than lower-capacity mainstream cards.
Modern Display Connectivity
Gigabyte provides four outputs split evenly between DisplayPort 2.1a and HDMI 2.1b.
Substantial Power Requirement
The specified 850W PSU recommendation and three 8-pin connectors should be considered during system planning.
Performance-Focused Cooling
Gigabyte's Gaming OC design uses a substantial WINDFORCE cooling assembly intended for sustained graphics workloads.
Where Research Agrees & Differs
Documented Hardware
Published specifications consistently establish the fundamental hardware: RX 9070 XT GPU, 16GB GDDR6, 256-bit memory interface, PCIe 5.0, factory-overclocked frequencies and four modern display outputs.
Performance Varies by System
Benchmark results can differ because of processor choice, game version, resolution, graphics settings, driver version, cooling, power configuration and test methodology. Individual benchmark results should therefore be interpreted in the context of the complete test system.
Strengths & Limitations
Strengths
- AMD Radeon RX 9070 XT / RDNA 4 architecture
- 16GB GDDR6 graphics memory
- 256-bit memory interface
- Factory-overclocked Gaming OC configuration
- Up to 3060 MHz boost clock
- 4096 stream processors
- PCI Express 5.0 interface
- WINDFORCE cooling system
- 2 × DisplayPort 2.1a
- 2 × HDMI 2.1b
- Support for up to four displays
- Strong fit for performance-oriented 1440p and 4K systems
Limitations & Planning Considerations
- 850W recommended PSU is substantial for a graphics-card upgrade
- Requires three 8-pin PCIe power connectors
- 288 × 132 × 56 mm dimensions require case-clearance planning
- Large cooler may restrict access to neighboring expansion slots
- Actual clock speeds vary with workload and thermal conditions
- Performance depends heavily on game, resolution and graphics settings
- High frame-rate gaming can become CPU-limited in some configurations
- Pricing can vary significantly by retailer and market conditions
Upgrade Considerations
Check the Power Supply
Confirm PSU capacity, quality and availability of three 8-pin PCIe power connections before installing the card.
Measure the Case
Check the chassis GPU-length allowance, card thickness and clearance around front-mounted radiators, fans and drive cages.
Consider the Rest of the System
Pairing a high-performance graphics card with an older or lower-performance processor can limit frame rates in CPU-intensive workloads.
Alternatives to Consider
NVIDIA GeForce RTX 5070 Ti
A competing high-performance GPU class worth comparing for features, application support, ray tracing, upscaling and current market pricing.
AMD Radeon RX 9070
The non-XT RX 9070 offers the same current Radeon generation at a lower performance and power tier.
Other RX 9070 XT Models
Sapphire, PowerColor, XFX, ASRock and other board partners offer RX 9070 XT designs with different coolers, dimensions, clocks and pricing.
Who Is It Best For?
Performance Gamers
Builders looking for a high-performance Radeon card for demanding modern games and high graphics settings.
1440p & 4K Builds
Systems centered on high-resolution monitors where the RX 9070 XT's GPU resources and 16GB memory can be put to use.
Longer-Term GPU Builds
Buyers who value a substantial 16GB graphics-memory capacity and modern display connectivity when planning a system intended to remain in service for several years.
Rockin Box Tech Research Summary
The Gigabyte Radeon RX 9070 XT Gaming OC 16G combines AMD's RDNA 4 Radeon RX 9070 XT GPU with a factory-overclocked Gigabyte board design, 16GB of GDDR6 memory and a substantial WINDFORCE cooling system.
Published specifications include 4096 stream processors, 64 compute units, a 256-bit memory interface, up to 3060 MHz boost frequency, PCIe 5.0 and four modern display outputs consisting of two DisplayPort 2.1a and two HDMI 2.1b ports.
The principal planning considerations are physical clearance and power. Gigabyte specifies dimensions of 288 × 132 × 56 mm, recommends an 850W PSU and requires three 8-pin PCIe power connectors.
For buyers researching a performance-focused Radeon graphics card for modern 1440p or 4K gaming, this model combines a large graphics-memory capacity, current-generation AMD architecture and a factory-overclocked board-partner design. Final purchasing decisions should also consider current pricing, system compatibility, workload requirements and competing graphics cards available at the time of purchase.
Research Sources
Gigabyte
Radeon RX 9070 XT Gaming OC 16G official product specifications and manufacturer documentation.
AMD
Radeon RX 9070 XT architecture, platform specifications and current Radeon software information.
Research Disclosure
Products are not necessarily physically tested by Rockin Box Tech.
Graphics performance, clock speeds, temperatures, acoustics, power consumption and application performance can vary according to processor, motherboard, memory, BIOS, graphics driver, operating system, case airflow, cooling, power configuration, application or game version, graphics settings, resolution and operating conditions.
Product specifications, firmware and driver support, pricing and availability may change after this review is published.
